Reach Trucks

RTM, RTH, RTX

Narrow Chassis Reach Truck

Electric Icon-01 Electric
48 v Voltage
2.5 t Max Cap

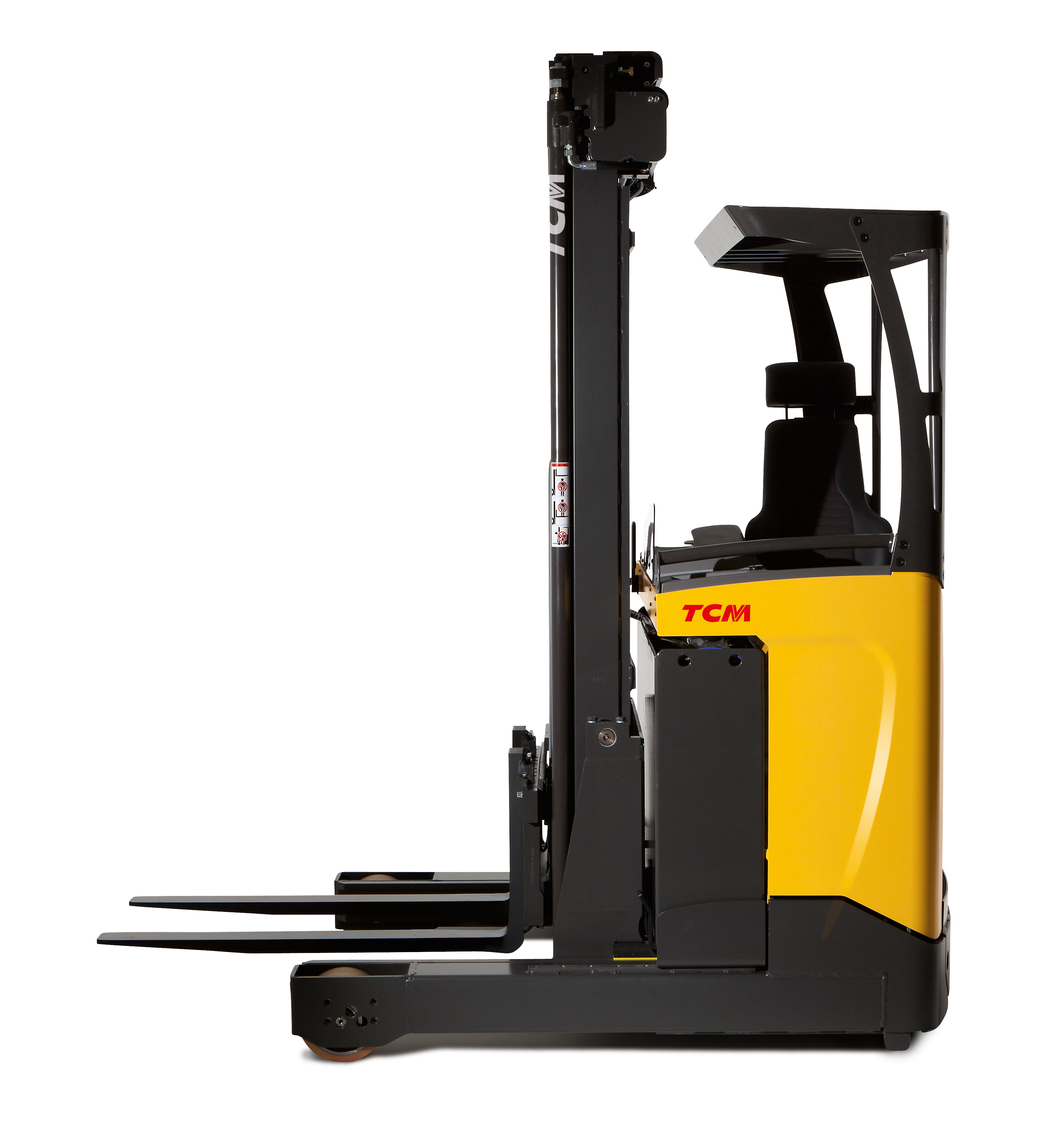

RTM_RTH

Ultimate Operator Comfort

TCM's new generation heavy-duty reach trucks bring your warehousing efficiency to the highest level. Entirely designed around the operator, these trucks provide world-class operator ergonomics and comfort and will adapt to your operational needs.



Designed to perform almost any heavy-duty 24/7 material handling task, the TCM RTM/RTH/RTX are universal reach trucks. The versatile RTM will perform effortlessly in your high intensive operations – perfect for internal transport and stacking up to 2,000 kg. For even tougher tasks, with a lift height up to 11.5 metres or loads up to 2,500 kg the robust RTH will the best choice. If your operations include hi-rack warehousing up to 12.1 metres, you'll find an excellent partner in the extremely stable and high stacking RTX. Each model will perform in almost any environment, including cold stores.



This series of reach trucks is also the most intuitively-designed. Everything about the TCM reach truck – from ergonomics to performance – is about productivity. Features including TCM's unique mini steering wheel with floating armrest, the multi-adaptable operator's environment, intuitive controls, tilting seat and superior visibility put the operator in control to maximise efficiency and safety.



High-precision mast design with soft stop technology and a fully damped reach system contribute to supreme stability in all conditions. Mast tilt and intuitive lift controls further facilitate loading and stacking at all heights. The hands-free direction control uses the accelerator for change of travel direction allowing the operator to use the right hand for operating up to three hydraulic functions simultaneously. The powerful 48V AC motor provides excellent performance – top speed is 13 km/h. To maximise productivity and safety, TCM's Truck Computer ATC3 allows the reach truck to be customised to each operator's driving skills.



By default, the maximum speed is 12.5 km/h, and a high-powered option gives the truck a top speed of 14.5 km/h, making the RTM one of the world's fastest reach trucks.



A wide range of innovative extra equipment such as ASR – Active Spin Reduction, LAS – Level Assistance System, ErgoLogic operator interface, Fast Track battery change system, load wheel brakes, video camera and cold store cabin complement an already feature-laden truck.

Enquire Brochure

Key Reach Truck Features

RT - Operator Comfort-989933-edited

Operator Comfort

By maximising operator comfort, our product range can help you increase efficiency. Operators will need fewer breaks with our carefully considered layout and ergonomically-designed controls.

B15-B16 -B17Equipment bar

Flexible Specification

The truck is almost infinitely customisable, allowing you to design a specialist truck for the specific application, users and environment it will be working in with a wide range of custom designed options and accessories.

RT - Driver Tailored Performance - alternative 2

Driver Tailored Performance

To enhance safety, the truck's performance can be set individually to suit each driver's skills and experience. Personal performance settings include acceleration, regenerative braking and top speed.

Differences Between Models

RTM

Up to 2,000kg capacity with lift heights up to 8.95m

RTH

Up to 2,500kg capacity with lift heights up to 11.5m

RTX

Up to 2,000kg capacity with lift heights up to 12.1m

forklift-safety-accident

Safety First

The TCM S3 - Stability Support System helps provide industry-leading safety levels. To maintain driving stability in a wide range of situations, the S3 technology continuously measures speed, steering, commands, mast movement and lift height of the truck. The new Dynamic Cornering Control feature modifies the relationship between the speed of the truck and the operator´s steering wheel movements allowing a higher level of cornering speed, even when handling loads at high levels. Optimised Performance Control adapts the tilt and reach speed to maximise stability and safety. Active Spin Reduction improves safety especially when driving on low-friction surfaces and helps reduce drive wheel wear for additional cost savings.

finance_770x400_shutterstock_574879378

Total Cost of Ownership

We view truck sales as a long-term strategic partnership, taking a consultative approach to understand your operations, processes and workforce, and bringing in factors like servicing and maintenance when looking at total cost of ownership.Taking a holistic view of materials handling, by far the biggest cost is the operator, so we will help you identify any areas where a more efficient truck would boost productivity and lower costs.

Why TCM

Self-Diagnosis [large]

Self-Diagnostics

Maximising up-time, the truck's computer has a built-in troubleshooting system that simplifies fault detection. No special tools or computers are needed to fix the truck which shortens repair times.

Dealer Network [large]

Dealer Network

TCM’s extensive pan-European dealer network means that not only will you have an experienced, understanding partnership pre-sales, but the after-care and any servicing is handled by your local experts quickly and professionally.

Common Parts [large]

Shared Parts Philosophy

The RTF is built on the reach truck chassis with TCM's unique shared components concept. By only having to carry a limited number of components, our mobile service engineers can fix over 95% of all breakdowns – on the first call.

Specifications
Model Voltage (V) Width (mm) Capacity (kg)
RTM160 48 1270 1600
RTM200 2000
RTH160 1270 1600
RTH200 1397 2000
RTH250 2500
RTX200 1397 2000
