Stage V Compliant Diesel & LPG Forklift.
The new series represents a major technological leap for our workhorse counterbalance range. Designed and produced in Europe, these trucks combine robust mechanical power with sophisticated digital control to drive your productivity while meeting the strictest Stage V emission standards.
More manoeuvrability, no compromises.
The FD/FGE 15–35's compact, precision-engineered design opens up areas inaccessible to larger counterbalance trucks. Narrow aisles and congested zones are easily navigated — without sacrificing lifting capability or speed.
Stage V ready, built for the future.
Our E3 generation complies with European Stage V emissions regulations from the ground up. LPG variants produce around 80% less NO₂ than diesel, making this the ideal choice for operations with environmental targets — without increasing running costs.

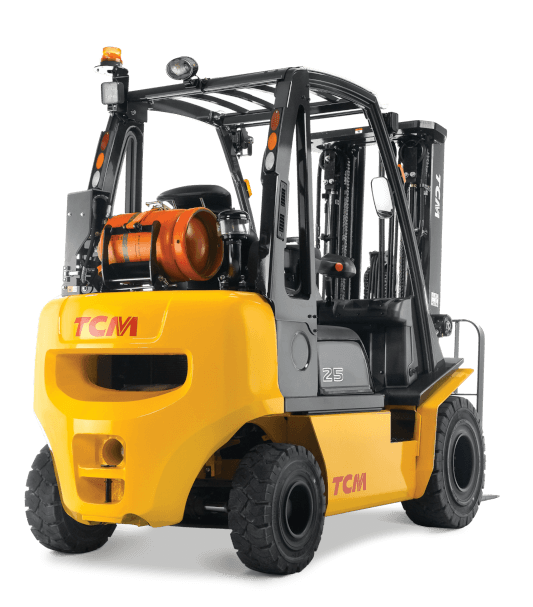

1.5 - 3.5 Tonnes Diesel & LPG Counterbalance Forklift
Specifications.
|
Model
|
Kg
Capacity
|
mm
Load centre
|
kW
Power
|
mm
Length
|
mm
Width
|
mm
Turning radius
|
km/h
Travel speed with / without load
|
|---|---|---|---|---|---|---|---|
| FGE15-E3 | 1500 | 500 | 41.0 | 2260 | 1065 | 1980 | 19,0/19,5 |
| FGE18-E3 | 1750 | 500 | 41.0 | 2300 | 1065 | 2000 | 19,0/19,5 |
| FGE20C-E3 | 2000 | 500 | 43.0 | 2355 | 1065 | 2020 | 19,0/19,5 |
| FD20-E3 | 2000 | 500 | 36 | 2485 | 1150 | 2200 | 18.5 / 19.0 |
| FGE20-E3 | 2000 | 500 | 43.0 | 2485 | 1150 | 2200 | 18.5 / 19.0 |
| FD25-E3 | 2500 | 500 | 36 | 2500 | 1150 | 2230 | 18.5 / 19.0 |
| FGE25-E3 | 2500 | 500 | 43.0 | 2500 | 1150 | 2230 | 18.5 / 19.0 |
| FD30-E3 | 3000 | 500 | 36 | 2735 | 1275 | 2380 | 18.0 / 18.5 |
| FD35-E3 | 3500 | 500 | 36 | 2795 | 1290 | 2440 | 18.5 / 19.0 |
| FGE35-E3 | 3500 | 500 | 47.0 | 2795 | 1290 | 2440 | 18.0 / 18.5 |
| FGE30-E3 | 3000 | 500 | 47.0 | 2735 | 1275 | 2380 | 18.5 / 19.0 |
Additional Capabilities Include:
- // Grammer MSG65 seat available in vinyl, cloth or heated variants, with adjustable forward and back movement and side lumbar support.
- // Grammer MSG75 full air suspension seat available in cloth or vinyl, for enhanced comfort across long shifts.
- // Tilt steering column with memory position, so every operator can personalise their driving position instantly.
- // Anti-cinch high visibility orange seatbelt as standard across all models.
The advanced safety features and customisable options are designed to keep operators confident, alert and protected throughout the workday. The Operator Presence System (OPS) provides audible and visual reminders to support maximum situational awareness.
Additional safety features include a rear grab bar with horn button, ground speed control, rear work light, rear blue light, strobe and alarm packages, and a thermoformed overhead guard cover. LPG models also benefit from a swing-down LP tank bracket for safe, easy cylinder changes.
What makes FD/FGE a great Counterbalance Forklift?
The E3 generation brings uprated engine performance across the range — 43kW for 1.5–2.0t models and 47kW for 2.5–3.5t models — while fully complying with European Stage V emissions regulations. Enhanced engine management delivers cleaner combustion, reduced noise and improved engine protection, and a built-in fuel saver mode cuts fuel consumption by up to 18%.
Customisable across a broad range of hydraulic, cabin, mast and tyre configurations, the FD/FGE 15–35(C)-E3 is built to match your operation — whatever it demands.
Optimum efficiency, reduced emissions.
The FD/FGE 15–35 range features uprated engine technology across both diesel and LPG variants, fully compliant with European Stage V emissions regulations. LPG models produce around 80% less NO₂ than diesel, while all models benefit from a built-in fuel saver mode that reduces fuel consumption by up to 18% — lowering running costs and your operation's environmental impact at the same time.
TCM
With forward-thinking machinery and unmatched industry expertise, we work closely with businesses of all sizes to understand every aspect of your working environment and discover the right solution for you.
Cutting-edge, efficient forklift trucks
Invest in partnerships
Local expertise and support
Operator comfort
Safety-first
Why TCM?
Self-Diagnostics
Maximising up-time, the truck's computer has a built-in troubleshooting system that simplifies fault diagnostics. No special tools or computers are needed to fix the truck which shortens repair times.
Dealer Network
TCM’s extensive pan-European dealer network means that not only will you have an experienced, understanding partnership pre-sales, but the after-care and any servicing is handled by your local experts quickly and professionally.
Shared Parts Philosophy
TCM trucks are modular built with our unique shared components philosophy, enabling quick and easy servicing for maximum uptime — even in 24/7 operations and heavy-duty applications.
