Reach Trucks

RTF

Four-way Directional Reach Truck

Electric Icon-01 Electric
48 v Voltage
2.5 t Max Cap
RTF

Ultimate Operator Comfort

Keeping aisles to a minimum, the powerful multi directional reach truck RTF offers flexible handling of long and other bulky goods or pallet loads – with superior ergonomics and comfort.

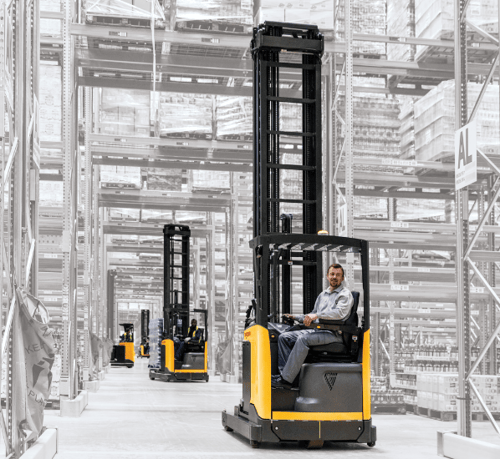

The RTF multi directional reach truck is ideal when handling both long loads and standard pallets with a lifting height of up to 9.7m. The truck can be driven in all directions with precision and the aisle width can be cut to 2.3–3 metres. With superior acceleration, a top speed of 13 km/h and high battery capacity, the truck can be driven intensively with maximum efficiency. Excellent all-round visibility makes the operator even more productive thanks to the ProVision design with an angled frame in the overhead guard, clear view mast and a high seating position. The separate footstep and a specially designed instep handle make it easy to get in and out of the truck, even with safety footwear.



EFFICIENCY AT THE HIGHEST LEVEL

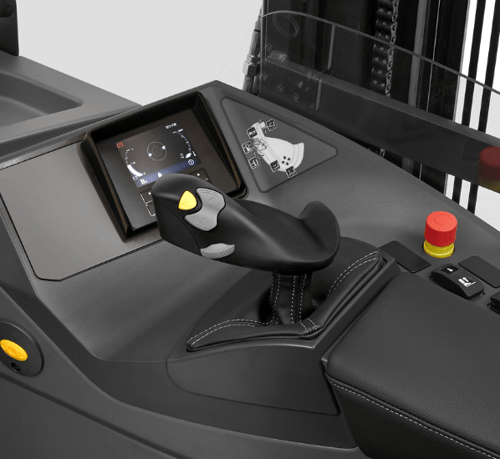

Everything about the TCM reach truck – from ergonomics to performance – is about productivity. Features include the unique TCM mini steering wheel and an 18° adjustable tilting seat that minimises strain during long shifts, with a spacious cabin designed entirely around the operator.



High-precision mast design with soft-stop technology and a fully damped reach system contribute to supreme stability in all conditions. Mast tilt and intuitive lift controls further facilitate loading and stacking at all heights. The hands-free direction control uses the accelerator for change of travel direction allowing the operator to use the right hand for operating up to three hydraulic functions simultaneously. The powerful 48V AC motor provides excellent performance – top speed is 13 km/h. To maximise productivity and safety, TCM's Truck Computer allows the reach truck to be customised to each operator's driving skills.

Enquire Brochure

3 Key Features

RT - Operator Comfort-989933-edited

Operator Comfort

By maximising operator comfort, our product range can help you increase efficiency. Operators will need fewer breaks with our carefully considered layout and ergonomically-designed controls.

B15-B16 -B17Equipment bar

Flexible Specification

The truck is almost infinitely customisable, allowing you to design a specialist truck for the specific application, users and environment it will be working in with a wide range of custom designed options and accessories.

RT - Driver Tailored Performance - alternative 2

Driver Tailored Performance

To enhance safety, the truck's performance can be set individually to suit each driver's skills and experience. Personal performance settings include acceleration, regenerative braking and top speed.

forklift-safety-accident

Safety First

The TCM S3 - Stability Support System helps provide industry-leading safety levels. To maintain driving stability in a wide range of situations, the S3 technology continuously measures speed, steering, commands, mast movement and lift height of the truck. The new Dynamic Cornering Control feature modifies the relationship between the speed of the truck and the operator´s steering wheel movements allowing a higher level of cornering speed, even when handling loads at high levels. Optimised Performance Control adapts the tilt and reach speed to maximise stability and safety. Active Spin Reduction improves safety especially when driving on low-friction surfaces and helps reduce drive wheel wear for additional cost savings.

finance_770x400_shutterstock_574879378

Total Cost of Ownership

We view truck sales as a long-term strategic partnership, taking a consultative approach to understand your operations, processes and workforce, and bringing in factors like servicing and maintenance when looking at total cost of ownership.Taking a holistic view of materials handling, by far the biggest cost is the operator, so we will help you identify any areas where a more efficient truck would boost productivity and lower costs.

Why TCM

Self-Diagnosis [large]

Self-Diagnostics

Maximising up-time, the truck's computer has a built-in troubleshooting system that simplifies fault detection. No special tools or computers are needed to fix the truck which shortens repair times.

Dealer Network [large]

Dealer Network

TCM’s extensive pan-European dealer network means that not only will you have an experienced, understanding partnership pre-sales, but the after-care and any servicing is handled by your local experts quickly and professionally.

Common Parts [large]

Shared Parts Philosophy

The RTF is built on the reach truck chassis with TCM's unique shared components concept. By only having to carry a limited number of components, our mobile service engineers can fix over 95% of all breakdowns – on the first call.

Specifications
Model Voltage (V) Width (mm) Capacity (kg)
RTF200 48 1498 - 1744 2000
RTF250 2500
