Class-leading energy efficiency

The FB/FTB has been built to automatically adapt truck behaviour to the driver’s wishes and needs. With an advanced range of features and applications, the FB/FTB is a great option for those looking for a vehicle that is agile, intelligent and durable.



First Class Ergonomics:

Designed with specific characteristics that centre around and optimise efficiency, comfort and safety, our new 48V electric counterbalance is both versatile and cost-effective. The new forklift is available in a range of load capacities; 1400, 1600, 1800 and 2000kgs, including standard and long wheelbase, guaranteeing your drivers have the best piece of equipment for the job.

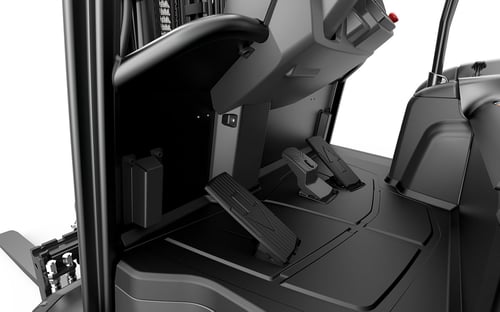

Ergonomic placement is a huge contributing factor to the comfort of this vehicle; the spring-force-optimised fingertip hydraulic controls are placed on the adjustable armrest to ensure perfect anatomical support and free movement for the driver. The pedals on the FB/FTB are designed, positioned and angled to reduce fatigue, regardless of a driver’s height or foot size.​


Innovative design:

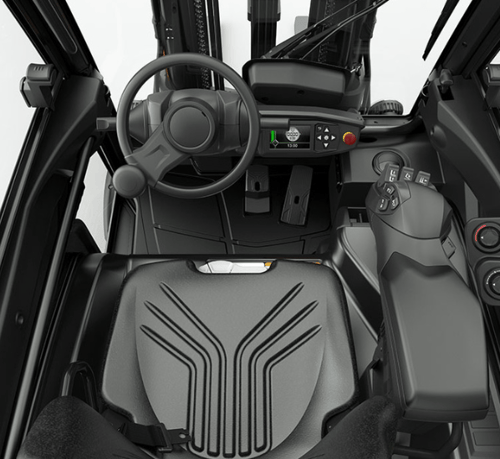

With a spacious operator compartment, a long-handled grab bar and a smooth curved side panel, the driver can access and exit the cabin confidently. The extended seat and steering column adjustability work to facilitate a healthy driving position and bespoke comfort.

Through an inclined and narrow dashboard, the high-vision design maximises an operator’s ability to see in front, down and beside them at all times. The driver can steer effortlessly as the truck is enhanced with a one-spoke steering wheel and a steering knob that returns to the ideal ‘8 o’clock’ position to enable effortless steering, control and precision.



No compromise, regardless of your preference

It should be noted that, as machines, the three and four-wheel trucks are identical; the only difference is the three-wheel forklift has a close-coupled steer wheel and the four-wheel vehicle has a traditional rear axle.

The three-wheel truck offers a 360° steering option. This allows the truck to efficiently turn and face the opposite direction in one smooth manoeuvre without stopping and improves cycle times dramatically.

Specifications

MODEL CAPACITY (KG) WHEELS OVERALL LENGTH (MM) LOAD CENTRE (MM) OVERALL WIDTH (MM) TURNING RADIUS TRAVEL SPEED, WITH/WITHOUT LOAD (KM/H)

FTB14-E4

1400

3

1846

500

1090

1502

16/16

FTB16-E4

1600

3

1846

500

1090

1502

16/16

FTB18-E4

1800

3

1846

500

1090

1502

16/16

FTB16L-E4

1600

3

1954

500

1090

1610

16/16

FTB18L-E4

1800

3

1954

500

1090

1610

16/16

FTB20L-E4

2000

3

1969

500

1140

1610

16/16

FB16-E4

1600

4

2002

500

1090

1662

17/17

FB18-E4

1800

4

2002

500

1090

1662

17/17

FB16-E4

1600

4

2110

500

1090

1770

17/17

FB18L-E4

1800

4

2110

500

1090

1770

17/17

FB20L-E4

2000

4

2125

500

 1140

 1770

17/17



Have Questions? Get In Touch

Safety First

Accidents can happen, especially in a material handling environment where trucks are transporting goods in tightly packed spaces. As our trucks are designed with operator safety as our top priority, we can confidently say that our products are amongst the safest on the market.



We’re really proud to be recognised for our commitment to safety by the Fork Lift Truck Association Awards 2018 and 2020. Our safety features are built to last and take into account how they’re actually used in real-world environments.

Total Cost of Ownership

We view truck sales as a long-term strategic partnership, taking a consultative approach to understand your operations, processes and workforce, and bringing in factors like servicing and maintenance when looking at total cost of ownership.



Taking a holistic view of materials handling, by far the biggest cost is the operator, so we will help you identify any areas where a more efficient truck would boost productivity and lower costs.

Why TCM

SD2

Self-Diagnostics

Maximising up-time, the truck's computer has a built-in troubleshooting system that simplifies fault diagnostics. No special tools or computers are needed to fix the truck which shortens repair times.

DN2

Dealer Network

TCM’s extensive pan-European dealer network means that not only will you have an experienced, understanding partnership pre-sales, but the after-care and any servicing is handled by your local experts quickly and professionally.

SPP2

Shared Parts Philosophy

TCM trucks are modular built with our unique shared components philosophy, enabling quick and easy servicing for maximum uptime — even in 24/7 operations and heavy-duty applications.
