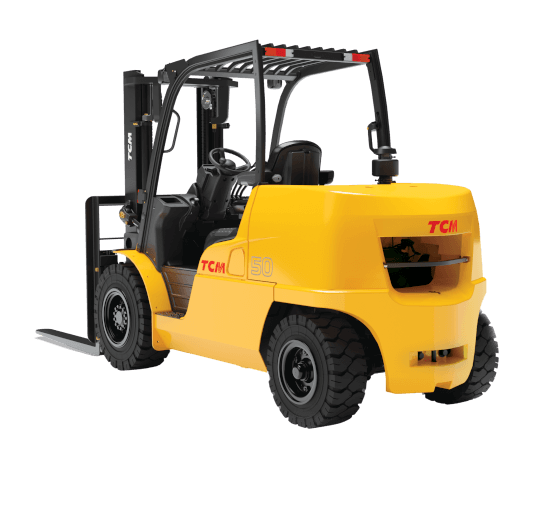

FD/FGE Diesel Counterbalance Forklifts | Compliant With EU Stage V

4 - 5.5 tonnes Diesel & LPG Counterbalance Forklift

Ergonomics you can’t ignore.

Central to this counterbalance forklift’s design is the belief that a comfortable operator is an effective operator. Features include the Grammer seat designed with adjustable forward and back movement, added side support in the back cushion, and an anti-cinch high visibility orange seat belt, creating a comfortable working environment during even the longest shifts.

Fuel efficient.

Innovative emissions technologies, including a fuel saver mode that can reduce fuel consumption by almost a fifth, ensures this cool, quiet counterbalance forklift complies with European Stage V emissions regulations while still maintaining unrivalled performance.

Safety first.

Ergonomics isn’t just about comfort. Advanced safety features such as the Operator Presence System (OPS), which provides audible and visual reminders to maximise visibility, help increase operator confidence and alertness throughout the workday while reducing risk.

FD/FGE 40-55

4 - 5.5 Tonnes Diesel & LPG Counterbalance Forklift

Load Capacity

4,000kg to 5,500kg

Load Centre

500mm - 600mm

Truck Length

3,000mm-3,360mm

Travel Speed with and without load

21/23.5km/h

Turning Radius

2,580mm - 2,940mm

Truck Width

1,415mm- 1965mm

Specifications.

Find a dealer Download Brochure

Model	Kg Capacity	mm Load centre	kW Power	mm Length	mm Width	mm Turning radius	km/h Travel speed with / without load
FD40-E2	4000	500	54	3000	1415/1965	2580	21.5/22.5
FGE40-E2	4000	500	54	3000	1415	2580	23/23.5
FD45-E2	4500	500	54	3130	1460/1965	2730	21.5/22.5
FGE45-E2	4500	500	54	3130	1460	2730	22.5/23.5
FD50C-E2	5000	500	54	3170	1460/1965	2760	21/22
FGE50C-E2	5000	500	54	3170	1460	2760	22.5/23.5
FD50-E2	5000	600	54	3310	1460/1965	2890	21/22
FGE50-E2	5000	600	54	3310	1460	2890	22/23
FGE55-E2	5500	600	54	3360	1460	2940	22/23

* Data provided is for guidance only. Actual data may vary depending on final truck configuration.

Additional Capabilities Include:

FD/FGE Diesel & LPG Counterbalance Forklift

// Rear grab bar with horn button
// Ground speed control
// Rear work light
// Rear blue light
// Strobe and alarm packages
// Thermoformed overhead guard cover
// Swing-down LP tank bracket

4 - 5.5 Tonnes Counterbalance Forklift

Developed with cutting-edge emissions technologies, the FD/FGE 40-55 counterbalance truck is compliant with European Stage V emissions regulations and maintains unrivalled performance. It’s cool and quiet, provides enhanced engine protection, and even features a ‘fuel saver mode’ to reduce fuel consumption by up to 18%.

The truck’s advanced safety features and customisable options help to increase operator confidence and alertness throughout the workday, whilst reducing risk. This includes the Operator Presence System (OPS), which provides audible and visual reminders to maximise visibility.

Additional safety features include a rear grab bar with horn button, ground speed control, rear work light, rear blue light, strobe and alarm packages, thermoformed overhead guard cover, and swing-down LP tank bracket.

Ask for advice

Enhancing operator safety and visibility

Our range of advanced safety features help to protect operators, pedestrians and assets in the working environment and increase operator confidence and alertness throughout the workday. This helps to reduce the risk of forklift accidents.

To increase safety for the operator and other members of staff, our Operator Presence System (OPS) comes as standard, providing audible and visual reminders to the operator.

Learn more
