Brand New to TCM: The SPW and SPR Pedestrian Pallet Stacker

By Marcus Turner
Find me on:

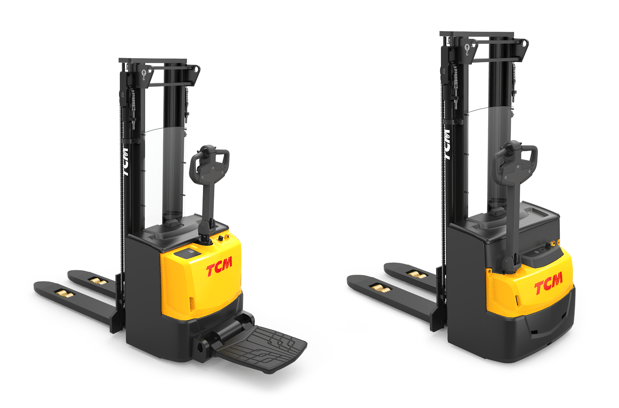

SPW SPR blog TCM forklift pallet stacker

The SPW and SPR are two compact pedestrian stackers brand new to TCM. This new generation of pedestrian pallet stackers comes in different sizes and has a range of different features and benefits. They boast the shortest chassis on the market and provide low-cost, efficient solutions for multiple stacking and order-picking applications. The new stackers are ideal for the narrow aisles of a warehouse – manoeuvring seamlessly through very tight spaces – and their initial lift ability offers higher intensity double stacking.

With world-class ergonomics and robust construction, the SPW and SPR pedestrian pallet stackers work to reduce environmental impact and maximise uptime, ultimately minimising your Total Cost of Ownership (TCO).

Are you ready to reduce your TCO? Discover the key areas you need to evaluate to increase your fleet profitability with this free guide.

Before we delve into the features and benefits, let's take a look at the specifications.

Specifications of the walk-on pallet stacker: the SPW

The SPW is available in four different load capacities; 1,000KG, 1,200KG, 1,400KG, and 1,600KG. The load centre distance of all of these models is 600mm, the load wheel axle to fork face (with forks lowered) is 700 - 925mm and the wheelbase ranges from 1,215mm to 1,610mm.

The truck’s weight without load, and with maximum battery weight, ranges from 730KG to 1,288KG, and all of the models have a track width (from the centre of the tyres) on the drive side of 515mm with a track width (from the centre of the tyres) on the load side of 385mm (bar one model which possesses a track width on the load side of 1,025 - 1,425).

Related read: Forklift Battery Charging Station Power Requirements Explained

Specifications of the ride-on pallet stacker: the SPR

Similar to the SPW, the SPR is available in four different load capacities: 1,000KG, 1,200KG, 1,400KG, and 1,600KG. The load centre distance of all of these models is 600mm, the load wheel axle to fork face (with forks lowered) is 700 - 925mm and the wheelbase ranges from 1,215mm to 1,610mm.

The truck’s weight without load, and with maximum battery capacity, ranges from 1,000KG to 1,440KG, and all of the models have a track width (from the centre of the tyres) on the drive side of 515mm with a track width (from the centre of the tyres) on the load side of 385mm (bar one model which possesses a track width on the load side of 1,025 - 1,425). Additionally, the SPR has a fold-down platform for improved operator comfort and efficiency on longer travel distances.

Both the SPW and SPR are available in models that offer initial lift and wide straddle. Get in touch with us here to discover more about the characteristics, such as the wheels, drive train, dimensions, performance, and motor specifications of TCM’s compact pedestrian pallet stackers.

The key features and benefits of the brand new SPW and SPR pedestrian pallet stackers

Enhanced efficiency

The chassis is ergonomically designed offering enhanced manoeuvrability. ​​The low-maintenance AC motor technology provides more torque and higher control – making it responsive to the slightest command from the operator – doesn’t use carbon brushes and offers advanced energy efficiency. This feature means there’s less chance of damage, a reduced need for servicing, and longer battery life, which makes for increased productivity.

The new models come with additional features as standard, too:

- A multi-purpose LCD display feeds back to the operator, offering information on the truck including battery condition, faults and truck hours.

- An ignition key with the option to implement PIN code access to avoid unauthorised truck use.

  •
  •
  • A multi-purpose LCD display feeds back to the operator, offering information on the truck including battery condition, faults and truck hours.
  • An ignition key with the option to implement PIN code access to avoid unauthorised truck use.

The SPW and SPR have robust 56 mm fork thickness that can be used with gitter box stillages, and wide straddle legs are available which provide extra stability when handling wider loads.

Click here to read about the range of pallet trucks we offer.

Designed especially for stacking work, the truck's usability and ergonomics have been tested by external experts. Offering easy access to all service areas, they also work as a warehouse ‘work horse’, meaning that the SPW and SPR are suitable for a variety of jobs.

Optimised for operator comfort

Operator comfort is integral. The patented, ergonomically-shaped tiller head with large life/lower rocker buttons and a large surface of speed control suits all hand sizes and is easy to use when wearing gloves. This enables effortless control and impact resistance from falling goods as it has a robust IP65 weather-protected casing. A rocker switch on the tiller head controls the speed-regulated proportional valve – used for lifting, lowering, and handling in a smooth, safe and precise way.

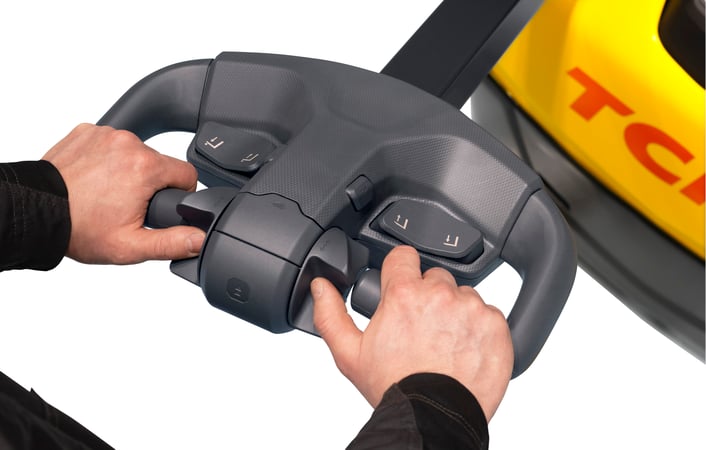

TCM forklift SPW SPR stacker truck tiller

The patented layout of controls – the distance between the hand and lift/lower rocker buttons makes them easier to reach which reduces fatigue and stress in the arms and hands of drivers. This also allows the driver to operate with one hand, even when wearing gloves, depending on the operator's driving position.

To further reduce stress and fatigue, the shaped throttle wheel has seven different finger positions, is cone-shaped and has an optimised, cross-sectional handle. For advanced visibility and operator comfort and safety, the tiller arm is height optimised, enabling the driver to see over the forks easily. This tiller head is likely the most ergonomic currently on the marketplace, delivering improvements in operability, efficiency and reliability.

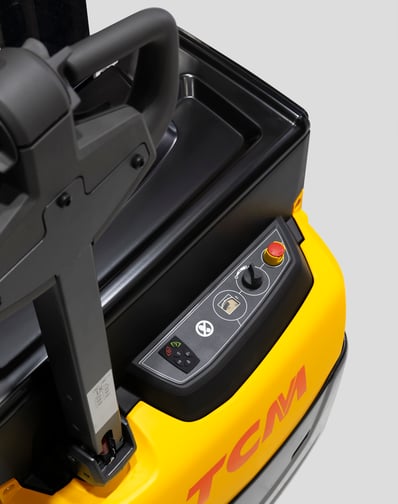

TCM SPW SPR forklift pallet stacker control pannel

Related read: How to Create a Culture of Health and Safety in the Workplace

Safety features you can rely on

Providing safety in tight spaces, these models include specially rounded edges to safeguard personnel and prevent damage, with metal sides to help absorb knocks. The sturdy chassis design delivers outstanding manoeuvrability, ensuring the driver is safe when navigating the narrow aisles of the workspace and the battery cover and hinges are made from steel. The strong construction of the pedestrian pallet stackers greatly enhances safety and reliability.

Both the SPW and SPR have 4 points of ground contact with the drive wheel located to the side. The more stability on offer, the easier and safer the machine is to handle. The SPW is configured with an offset tiller arm to improve the visibility of the load whilst working, providing comfortable and reliable conditions, enabling the operator to drive, manoeuvre and work safely.

Related read: 5 Recommended Safety Features to Reduce Forklift Truck Accidents

Our new compact pedestrian pallet stackers are fitted with emergency stop switches that cut the current in emergencies. This is easy, simple, and fast, ensuring optimal safety in emergencies. The forklift trucks have two driving modes: ECO and performance, which makes using the machine effortless even for new, inexperienced drivers. The ECO mode saves energy, creates a safer, more comfortable working environment and the longer battery usage enhances efficiency.

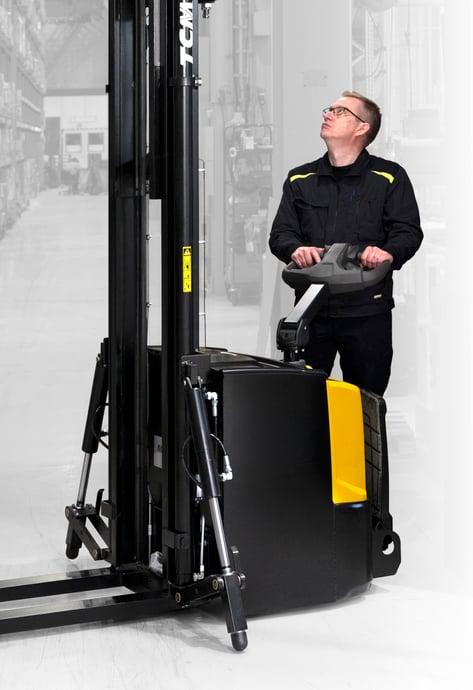

tcm spw spr forklift pallet stacker stabilisers

The high ground clearance of the initial lift model enables the equipment to scale ramps and uneven floors easily, without compromising the view of the forks, making for better usability and decreasing any safety concerns.

Is your organisation ready for 2030? Read our electrification readiness checklist to discover everything you need to know to prepare.

The Benefits of Utilising Li-ION Battery Power for the SPW and SPR Pedestrian Pallet Stackers

Whilst you can choose which battery type to pair with our pedestrian pallet stackers (Lithium-ion (Li-ion) or lead acid), Li-ion batteries come with a huge range of advantages. Li-ion batteries can offer real benefits over lead-acid batteries, particularly in high energy, multi-shift, and 24/7 applications. They offer longer life, higher efficiency, and a longer run time. This facilitates a consistent performance, faster-charging ability, no maintenance and in-built protection.

Related read: Forklift Battery Types: Which Is the Most Economical?

These pedestrian pallet stackers come with fully integrated Li-ion batteries including alternatively on-board or external chargers. The new Li-ion battery range includes a price competitive 105 Ah alternative for light-duty operations which is a perfect match for many applications. The energy storage savings of the Li-ion batteries can work to reduce your TCO.

When it comes to TCO, TCM can advise you on the most cost-effective energy solution you will need to meet all your operational requirements. Learn more about TCO here.

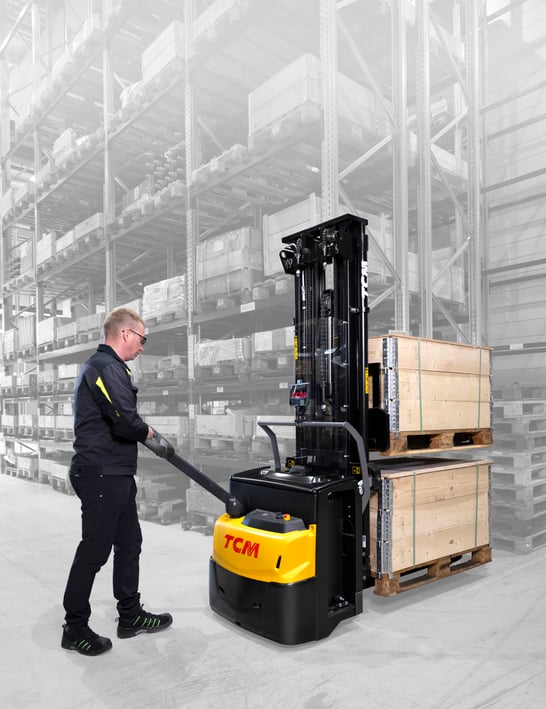

TCM spw spr forklift pallet stacker warehouse operator

Why Choose the SPR or SPW as the Solution for your Material Handling Operations?

Ultimately flexible: flexibility means these pedestrian pallet stackers are optimised to suit your application – ensuring it’s not too big or small and suits your specifications. The chassis is compact, making it perfect for moving around tight spaces.

Foldable stabilisers: we’ve introduced hydraulically foldable side stabilisers which offer higher residual load capacities at high lift heights.

EN 1175:2020 compliant: from April 15th, 2023, all products must comply with the new electrical safety standard. The new generation includes a number of new electrical components, providing improved safety and reliability.

Sustainability: at TCM, sustainability is key. With lower energy consumption and recyclable materials, these models are undoubtedly environmentally-friendly

Whether it’s maximising productivity, improving operators’ comfort and safety, creating a future-proof forklift fleet, or all of the above, warehouse managers often face demanding and competing priorities. Download your free guide here to identify your material handling needs.

With our extensive expertise and professional knowledge, we’re here to help you optimise your material handling solutions and achieve your business goals. Get in touch with us here to find out more. Or click here to find a local dealer near you.
